Power
QSN-1DALUNV-D: 120/220-240 V~ 50 / 60 Hz, max 120 mA
QSN-2DALUNV-D: 120/220-240 V~ 50/60 Hz,max 120 mA
QSN-2DALUNV-S: 120 V~ 50/60 Hz max 120 mA
Lightning strike protection meets ANSI/IEEE standard 62.31-1980. Can withstand voltage surges of up to 6000 V~ and current surges of up to 3000 A
DALIR Bus Output: 16 V- 128 mA guaranteed supply current, 250 mA maximum supply current per bus
Standards

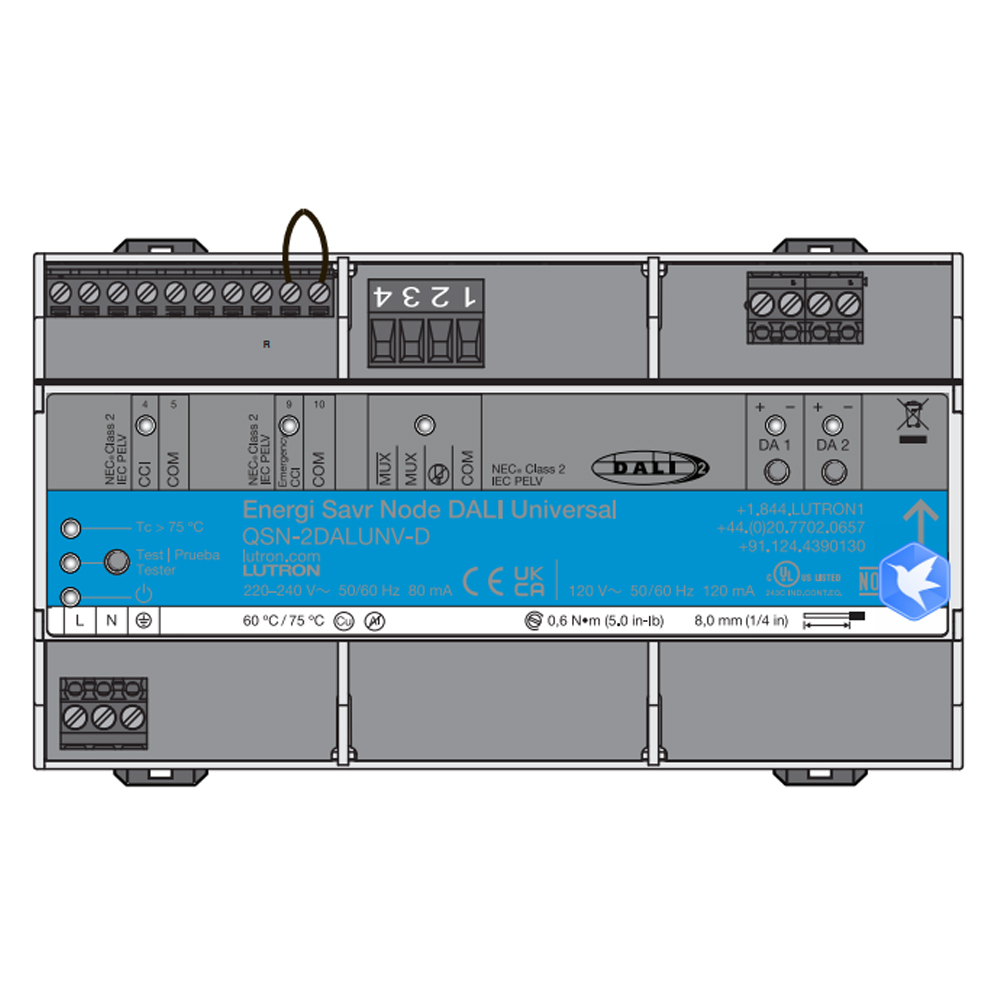

QSN-1DALUNV-D, QSN-2DALUNV-D
Lutron Quality Systems registered to ISO 9001:2015
IEC 60669-2-5
DALI-2R certified - IEC 62386-101 and IEC62386-103 ed.2
NOM Certified
ICES-3(B)/NMB-3(B)
FCC Part 15
cULus Listed
Evaluated by ULR for use in emergency lighting systems in accordance with UL924 when paired with a LUT-ELI-3PH (ULR file E234628)
QSN-2DALUNV-S
Lutron Quality Systems registered to ISO 9001:2015
NOM Certified
ICES-3(B)/NMB-3(B)
FCC Part 15
cULus Listed
Complies with requirements for use in other spaces used for environmental air (plenums) per NECR 201 300.22(C)(3)
Meets the Canadian National Building Code plenum requirements for a concealed space used as a plenum within a floor or roof assembly
Environment
Terminals (torque, wire gauge & type ratings)
Mains wiring: 5 in-lbs (0.6 N?m) 18 AWG to 12 AWG (1.0 mm2 to 4.0 mm2)
DALIR Bus Wiring: 5 in-lbs (0.6 N?m) 20 AWG to 12 AWG (0.5 mm2 to 4.0 mm2)
QS Link Wiring: 5 in-lbs (0.6 N.m)
Power (terminal 1):
20 AWG to 12 AWG (0.5 mm2 to 4.0 mm2)(single wire, solid or stranded)
24 AWG to 18 AWG (0.25 mm2 to 1.0 mm2) (two wires, solid or stranded)
Data (terminals 3 and 4):
1 pair, twisted and screened,
20 AWG to 12 AWG (0.5 mm2 to 4.0 mm2)(single wire, solid or stranded)
24 AWG to 18 AWG (0.25 mm2 to 1.0 mm2) (two wires, solid or stranded)
20 AWG to 16 AWG (0.5 mm2 to 1.5 mm2)(single wire, solid or stranded)
24 AWG to 18 AWG (0.25 mm2 to 1.0 mm2)(two wires, solid or stranded)
