QS Link Plug-In Power Supply
The QS Link Plug-In Power Supply provides power to Lutron QS shading solutions as well as QS system devices and interfaces.
The power supply plugs into a standard receptacle and delivers 35 V- output voltage which conforms with NEC® Class 2/PELV.
Features
NEC® Class 2/PELV power supply capable of powering Lutron shades, drapery drive units, keypads & accessories
Compliant with U.S. Department of Energy Efficiency Level VI regulations for External Power Supplies

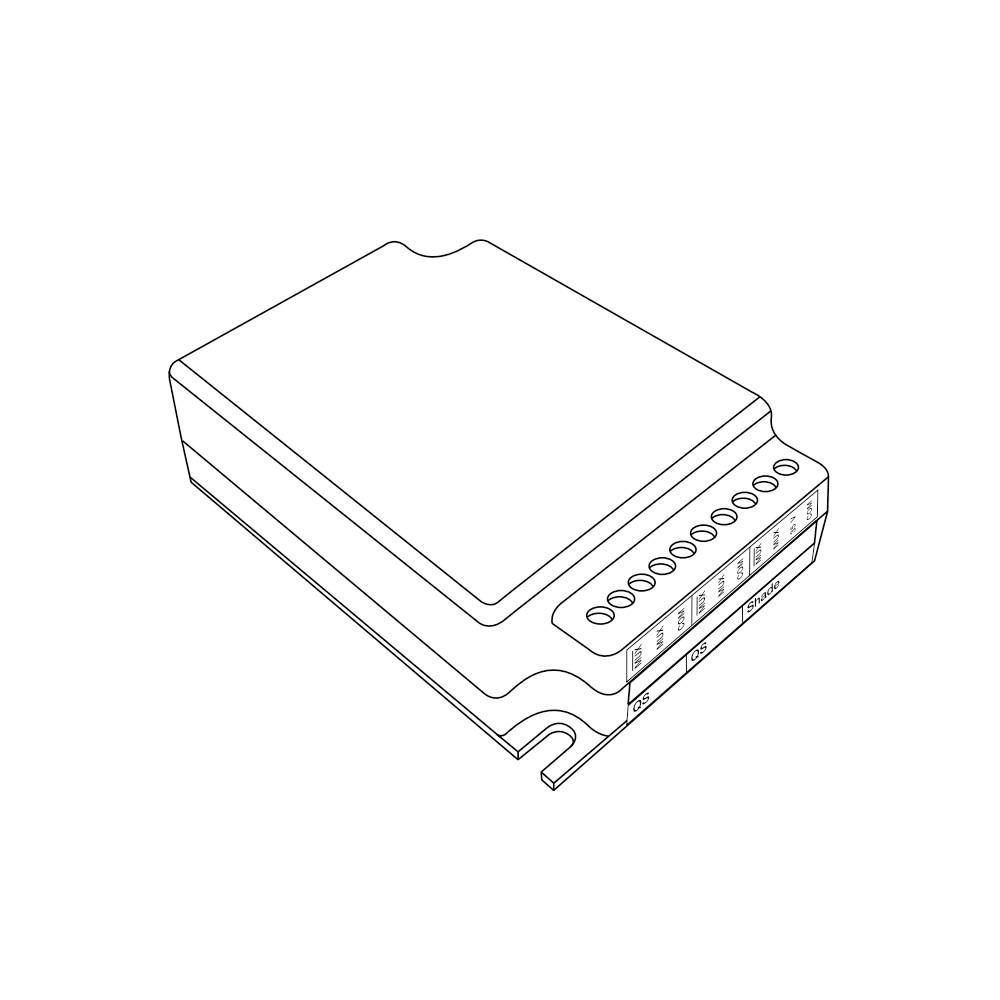

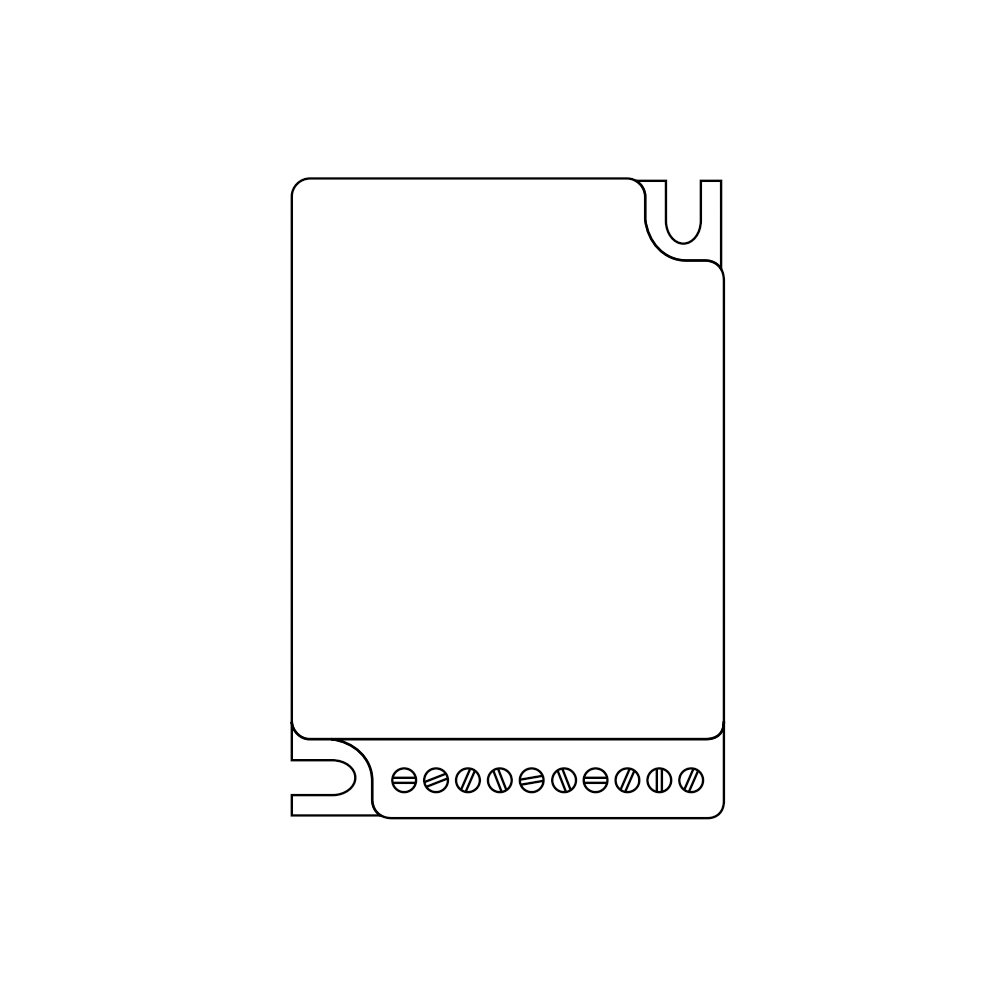

Mounting tabs and small size allow for discrete installation
Simple wiring topology to connect QS communication between shades and other QS devices/system components

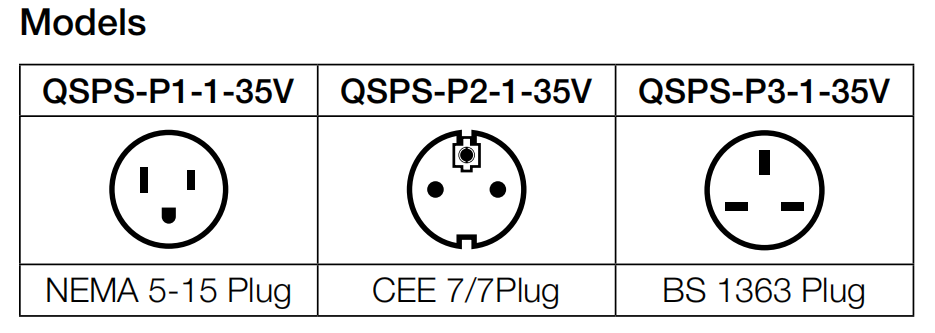

Includes AC power cord (see below for available plug styles)
Power
Input: 120-240 V~ 50/60 Hz 1.2 A
Output: 35 V- 0.143 A 5 W
Capable of powering any one Lutron QS window treatment drive OR up to 8 QS PDU’s (see QS Link Wiring Rules on page 5)
Input Wiring
Designed to be powered by an AC power cord with IEC C13 connector
Supplied power cord length: 6 ft (1.83 m)
Use power cord supplied or any approved power cord that is compatible with the installation site
Power Cord Requirements:
– IEC C13 Connector
– 300 V, 140 °F (60 °C) minimum insulation
– 18 AWG (1.0 mm2 ) minimum (3-conductor)
– Minimum length: 6 ft (1.83 m)
– Maximum length: 10 ft (3.0 m)
Output Terminal Wiring
22 AWG – 12 AWG (0,5 mm2 – 4,0 mm2 ) single wire, solid or stranded
Torque: 5 in-lbs (0,5 N?m) ? Strip length: 1/4 in (6 mm)
Local connections for 4-conductor shade power/communication, and (2) 3-conductor communication pass-through links
Regulatory Approvals
U.S. Department of Energy Level VI Compliant
NRCan Compliant ? cULus Listed
IEC Compliant (CE Marked)
NOM Certified
FCC Compliant
CCC Certified
Environment
Ambient temperature operating range: 32 °F to 104 °F (0 °C to 40 °C)
Relative humidity: 0% to 90% non-condensing
For indoor use only; not approved for plenum installation
Thermal dissipation: 4.5 BTU/hr
Performance
+/- 6 kV surge protection (ANSI/IEEE C62.41-1991)
+/- 16 kV ESD protection (EIC 61000-4-2 AIR DISCHARGE)
Self-recoverable short circuit/miswire protection on power output terminals
Self-recoverable overload/over temperature protection
