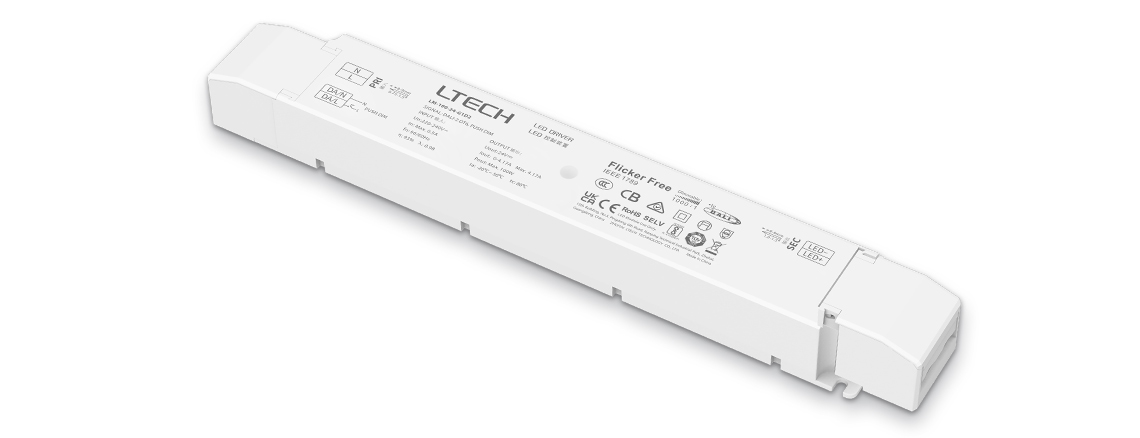

100W 24VDC CV DALI Driver LM-100-24-G1D2 价格: 编号:LM-75-12-G1D2/LM-75-24-G1D2/LM-100-24-G1D 产地:CHINA

Online inquiry

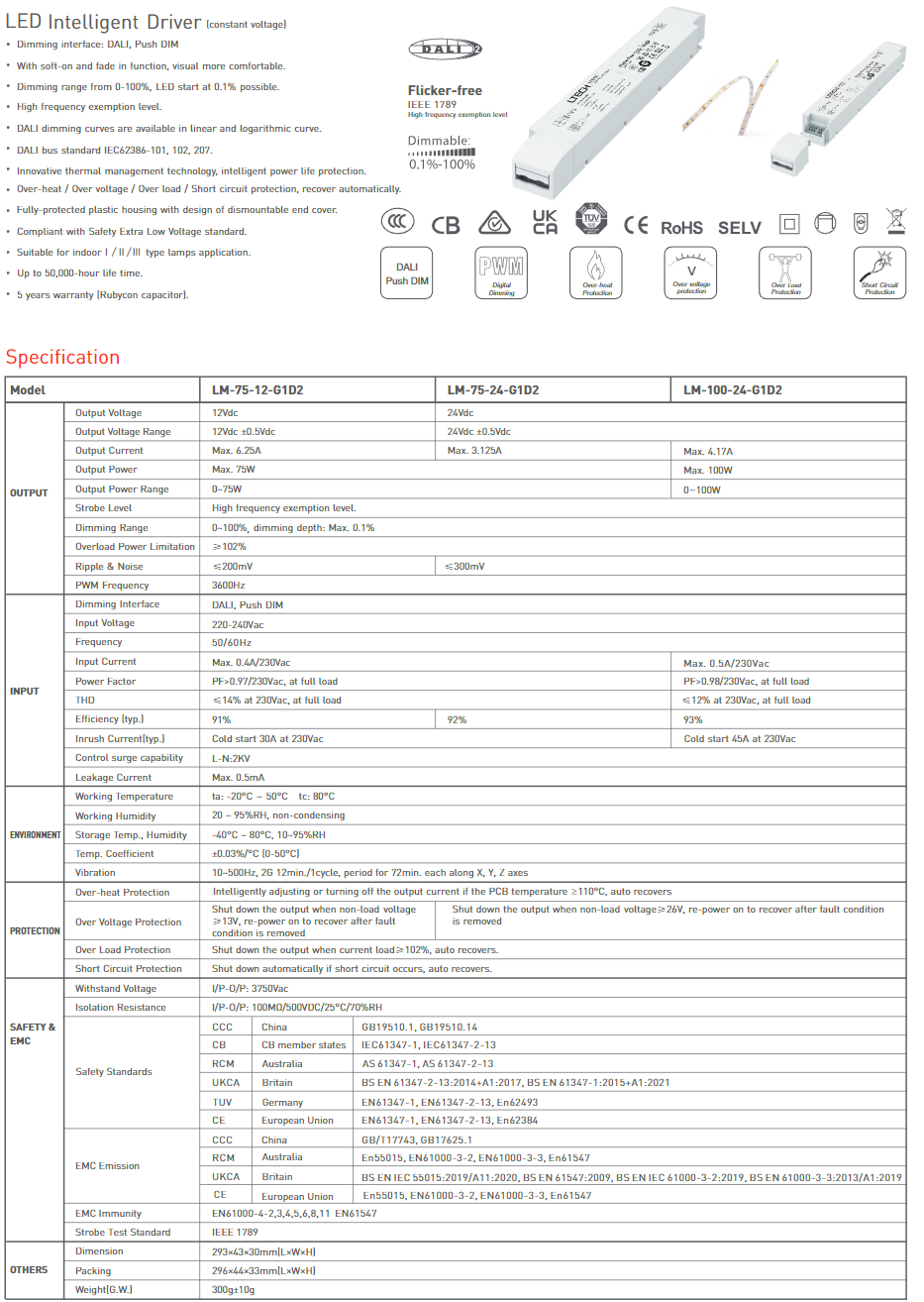

Details Specification parameters Product packaging

l Dimming interface: DALI, Push DIM

l With soft-on and fade in function, visual more comfortable.

l Dimming range from 0-100%,LED start at 0.1%possible.

l High frequency exemption level.

l DALI dimming curves are available in linear and logarithmic curve.

l DALI bus standard IEC62386-101, 102, 207.

l Innovative thermal management technology, intelligent power life protection.

l Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

l Fully-protected plastic housing with design of dismountable end cover.

l Compliant with Safety Extra Low Voltage standard.

l Suitable for indoorI/II/III type lamps application.

l Up to 50,000-hour life time.

l 5 years warranty (Rubycon capacitor).
